CMOS Starlight Level with 3000m Laser
Camera 12.5-1000mm 4MP 1/1.8 CMOS Starlight Level with 3000m Laser

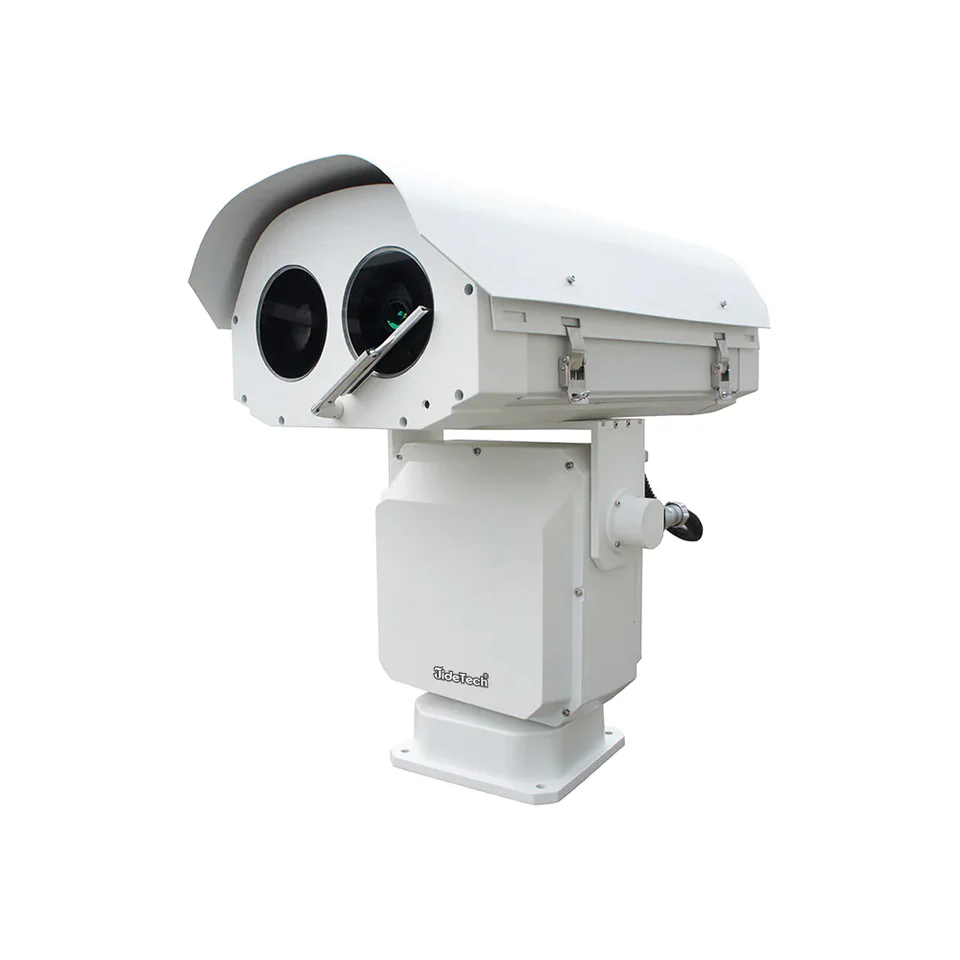

JideTech 80X Telephoto Lens PTZ Camera 12.5-1000mm 4MP 1/1.8CMOS Starlight Level with 3000m Laser(D98)
Feature:
Optical 80 X，focus Length 12.5~1000 mm，FOV 33.9°x 19.5°,0.46°x 0.26°,F3.5-F10; Starlight, 1/1.8"CMOS,
Integrated IP Encorder，4M Pixels，2688x1520/P30，H.264，H.265，SD storage，RTSP，VLC protocol，two-way AudioIn/Out;
Night-vision distance 3000M，View angle 0.3～25°，Laser wavelength 809nm，light angle proportionable camera view .
21" Joined Cavity, 2 same windows; Basic PT Config.
Aluminum shell,steel structure design,worm gear drive and stepper motors,anti-shock; Loading weight 20Kg; pan 360°,tilt -60°~+60°, pan speed 0.02-48°/s, tilt speed 0.02-24°/s; accuracy ±0.04°.Built-in OSD menu, three-grades lightning protection, alarm function, internal temperature display, etc. Support Pelco-P/D and other protocols.
Specification：
Pan/Tilt | D98 Series | ||||
Rotation Range | Pan 360°continuously; Tilt 120°(60°~+60°) | ||||
Pan Speed | 0.02°~48°/S | ||||
Tilt Speed | 0.02°~24°/S | ||||
Preset Speed | Pan 48°/S, Tilt 24°/S | ||||
3D Location | Support | ||||
Zoom/Speed Proportion | Auto-speed proportionate to the length of focus | ||||
Position Accuracy | ±0.05° | ||||
Preset | 128, titles can be edited | ||||
Auto Flip | N/A | ||||
Auto Scan | 355°programmable, 4 scan | ||||
Patterned Scan | 4, each record time is not less than 180S | ||||
Display Zone | 8 with titles, (support automatic scanning in zone) | ||||
Baud rate(Rs485) | 2400/4800/9600/19200bps | ||||
ID Range | 1~254 | ||||
Alarm | Support | ||||
Decoder | Build-in | ||||
Power loss recovery | Support | ||||
PTZ position display | ON/OFF | ||||
Preset video freeze | Opational | ||||
OSD | Support | ||||
Temperature display | Survey the temperature inside of the PTZ | ||||
Park action | Preset/Pattern/Tour/Auto Scan | ||||
Timing task | Preset/Pattern/Tour/Auto Scan | ||||
Remote Controlling | RS485, RJ45 | ||||
Camera Sensor | |||||
Sensor | Sony 1/1.98Type Exmor CMOS sensor | ||||
effective pixels | 2M pixels | ||||
Effective Output | 1920x1080 | ||||
Visual lens | HD 80X zoom lens | ||||
Focal length (mm) | 12.5-1000 | ||||
Zoom value | 80X | ||||
effective pixels | 2M pixels | ||||
Iris | F3.5-F10 | ||||
Wide View of angle (WxH) | 33.9°x 19.5° | ||||
Tele View of angle (WxH) | 0.46°x 0.26° | ||||
Infrared confocal | Yes | ||||
Penetrating fog | Electronic | ||||
Auto-focus | Yes | ||||
Anti-vibration | Electronic (Opational) | ||||
Back focal length (mm) | 0 | ||||
Minimum object distance (m) | 0 | ||||
Front optical apeture | 0 | ||||
Back optical apeture | 0 | ||||
Laser Model | DM-3000-HD | ||||
Wave length | 808 ±5 nm | ||||
Light distance | Tele 0.3°：effective >3000 M | ||||
Light angel | 0.3°～25° vary continious | ||||
Control Mod | photosensitive / command | ||||
illuminate control | Auto / manual | ||||
Light consumption | approach 16 W | ||||
Total Power | 20 W | ||||
Max. Consumption | 54W | ||||
Zoom speed | 3s (optical, wide--Tele) | ||||
Life | 30000 hours above | ||||
